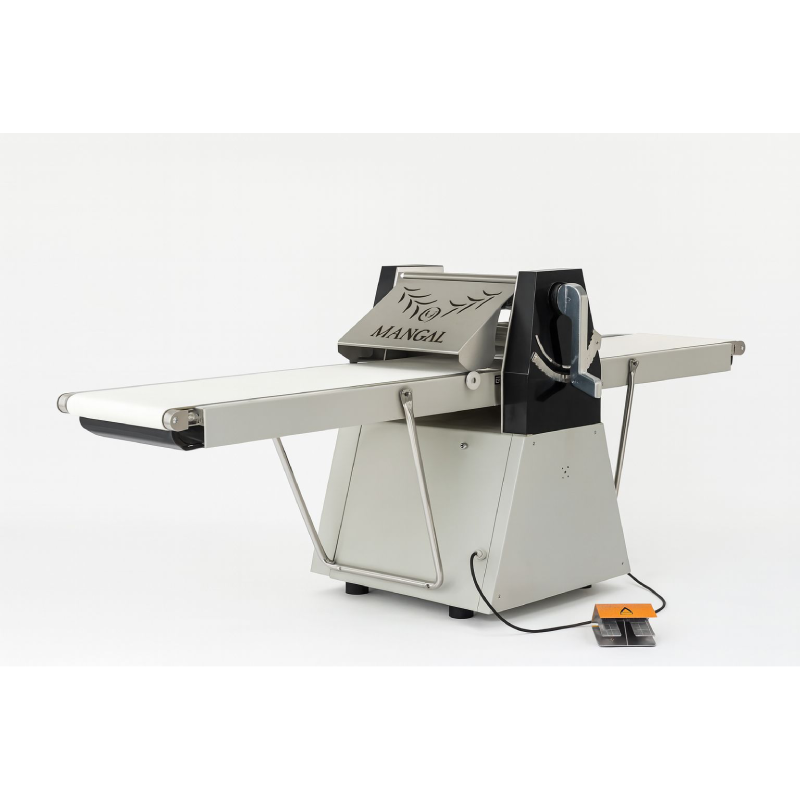

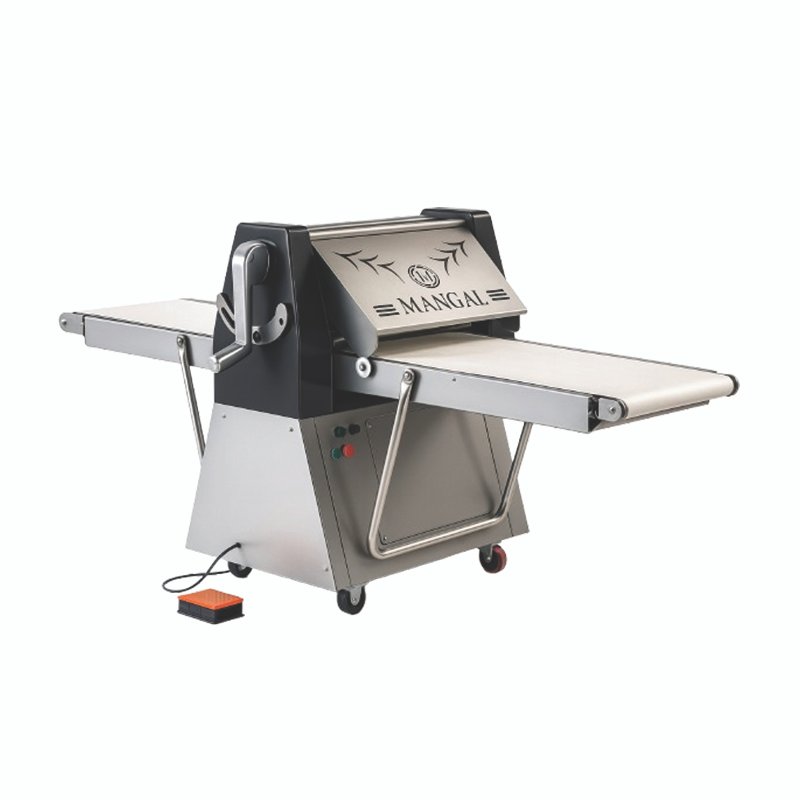

Heavy Duty Dough Sheeter

Mangal Bakery

Heavy Duty Dough Sheeter

Mangal Bakery

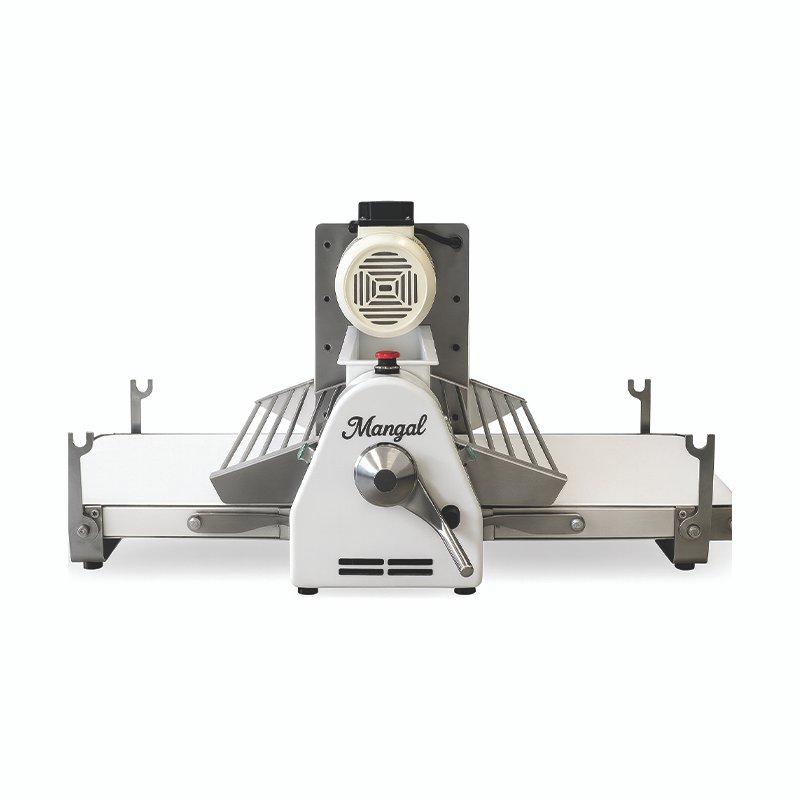

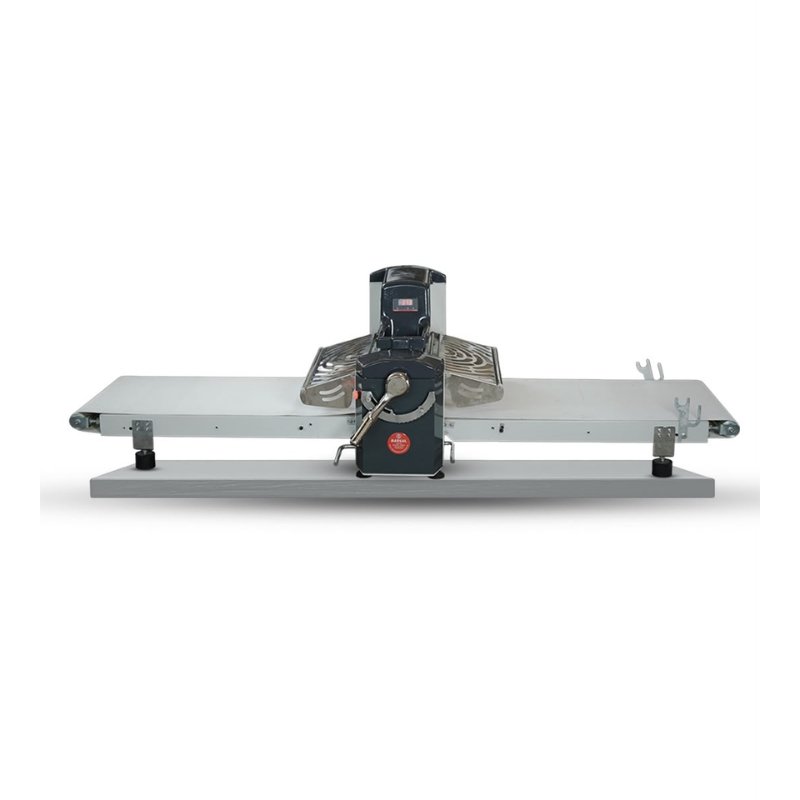

Table Top Dough Sheeter

Mangal Bakery

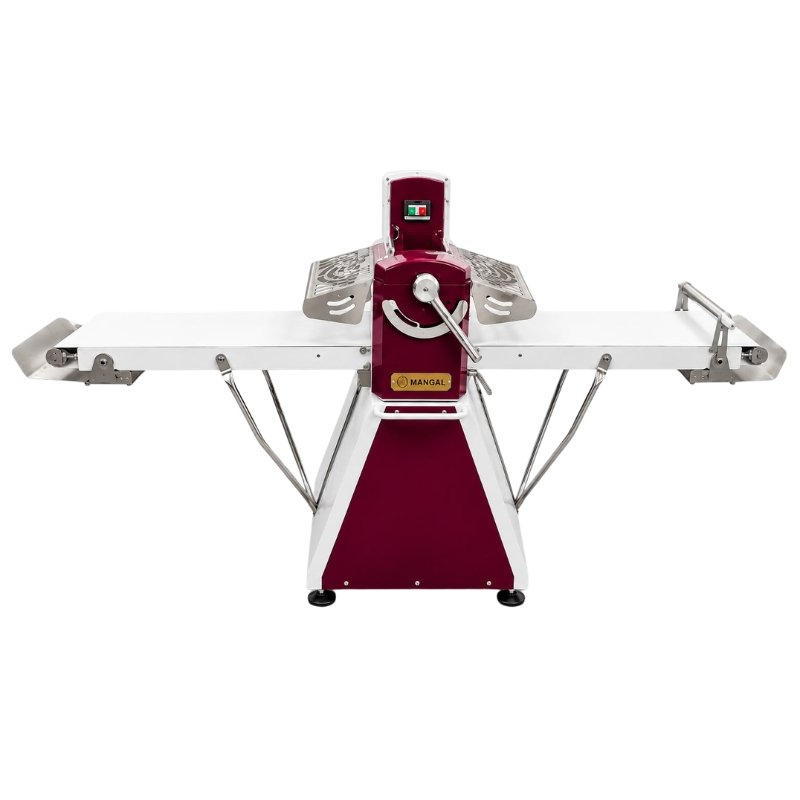

Italian Manual Sheeter

Mangal Bakery

Automatic Sheeter

Mangal Bakery

Specifications


The machine features a sturdy head housing made from heavy-duty aluminum alloy, ensuring long-lasting durability. It is equipped with safety guards on both sides of the rollers for enhanced protection. Additionally, the convenient push-button controls allow smooth forward and reverse operation, making it easy and efficient to use.

Model Belt Dimension Roller Dimension Roller to Roller Height Power Dimensions
Heavy Duty Dough Sheeter 580 x 2860 mm 600 mm Min 1 mm
Max 34 mm		 1 HP 3300 x 1200 x 1350 mm
Table Top Dough Sheeter 580 x 2860 mm 600 mm Min 1 mm
Max 34 mm		 1 HP 3300 x 1200 x 1350 mm

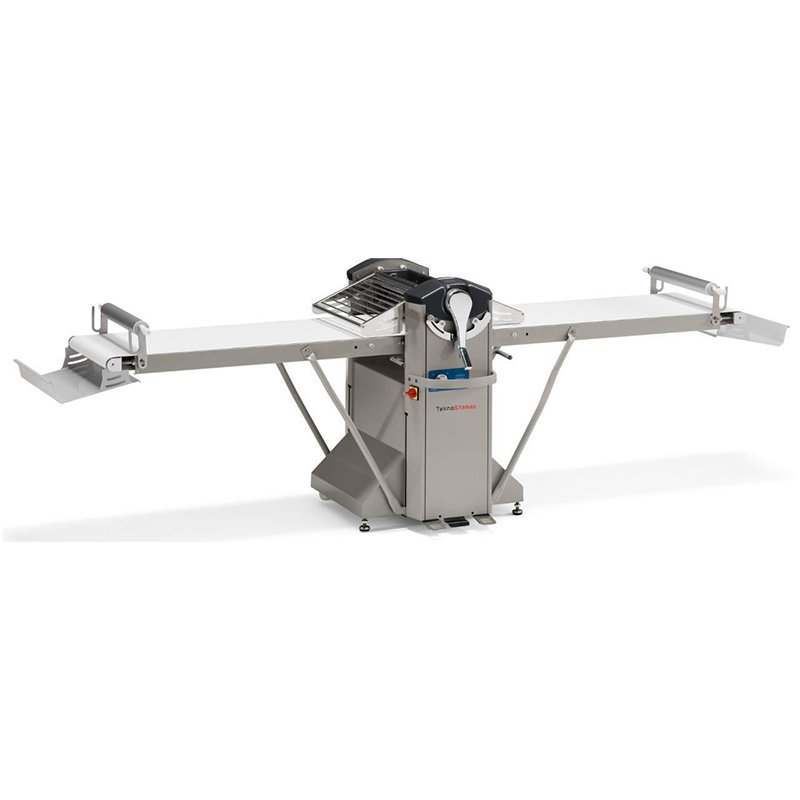

Italian Manual Sheeter Specifications


The EASY line of Tekno Stamap reversible manual sheeters is engineered for efficiency, ease of use, and quick maintenance. Its compact design allows it to fit seamlessly into any workspace, making it ideal for bakeries with limited space. The removable and replaceable dough scrapers require no tools, ensuring fast, hassle-free cleaning and excellent hygiene. Ergonomically designed handles combined with a digital display allow precise control over dough thickness, delivering consistent results with minimal effort. With intuitive operation and user-friendly features, this sheeter is a dependable, high-performance solution for professionals looking to simplify workflow and maximize productivity.

Technical Features:
The machine operates at a standard belt speed of 60 cm/s, with adjustability from 12 to 60 cm/s for greater control and an energy-saving option. It is powered by a 0.55–0.75 kW motor and supports voltage ranges from 220V to 480V in both single-phase and three-phase configurations. Designed to work efficiently across frequencies of 50–60 Hz, the sheeter’s solid construction ensures stability, with machine weight ranging from 120 kg to 226 kg.

Optional Features:
Optional configurations include a stainless-steel base construction for enhanced durability, a cutting attachment for added versatility, and variable belt speed options available either with two fixed speeds or a variator to suit different production needs.

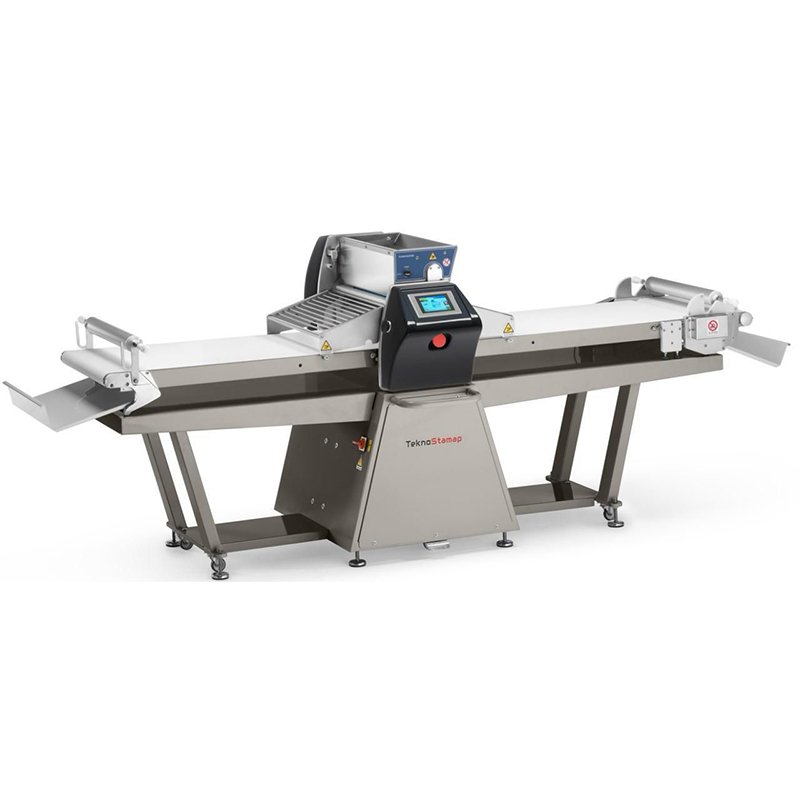

Automatic Sheeter Specifications


The Smart automatic dough sheeters represent Tekno Stamap’s excellence in lamination technology. Designed for precision and performance, SMART models seamlessly combine the simplicity of a manual machine with the convenience, speed, and accuracy of fully automatic touch-screen programming.
The Autosmart range stands at the top of automatic dough sheeters, delivering consistent results, ease of operation, and advanced control - making it an ideal choice for modern bakeries focused on efficiency and quality.

Technical Features:
The machine is built with a heavy-duty frame to ensure long-lasting and reliable performance. It offers variable belt speeds ranging from 20 to 100 cm/sec, allowing precise control for different dough requirements. Programming is quick and intuitive with advanced Smart Software, operated through a user-friendly touch-screen control panel. The system supports up to 50 customizable working programs with program sequencing capability, enabling efficient and consistent production. It can be operated in both automatic and manual modes for maximum flexibility. The scrapers are made from food-grade polyethylene and are easy to remove and clean, ensuring high hygiene standards.

Optional Features:
Optional enhancements include a winding roller with a no-stress system to protect dough structure, a flour duster with adjustable flour quantity for uniform dusting, a cutting device with rollers and variable speed for precise shaping, and a dough width control system for consistent sizing.
